Founded in 1889, what is now Farmers Coop Elevator Co. in Lidgerwood, ND is one of the oldest continually operated farmer cooperatives in the United States.
A century and a quarter later, Farmers Coop remains relatively small by Northern Plains standards, with three grain handling locations, two in Lidgerwood at the north and south ends of town and six miles west at Geneseo, ND.
Many of the upgrades in recent years have been at the south elevator in Lidgerwood, which is the rail loading location for the cooperative. According to General Manager Todd Dravland, who came to Farmers Coop three years ago from Kragnes Farmers Elevator in Dilworth, MN, the coop had been loading shuttle trains on CP Rail and wanted to add Burlington Northern Santa Fe Railway (BNSF), which also had trackage rights to Lidgerwood.
Abundant Elevator Storage Fills Shuttles
Farmers Coop ships most of its grain – corn, soybeans, and hard red spring wheat – through its terminal to the Pacific Northwest. Much of that grain, especially the soybeans, ends up in China.
Shuttle trains for grain on CP Rail have 100 to 105 railcars holding an approximate total of 370,000 bushels. BNSF trains, with a larger percentage of high-capacity cars than CP Rail, consist of 115 cars and hold 430,000 bushels.
The south elevator, with more than 4 million bushels of storage, easily holds enough grain to fill shuttle trains. However with a larger number of anticipated trains, Farmers Coop needed greater loadout capacity.
“We budgeted for 24 trains in 2020,” says Dravland, “and we expect we’ll get 18 of them by year’s end.”
Farmers Coop hired three main contractors to boost train handling capacity: Viking Track Services, Grand Forks, ND (701-330-4490), to add enough new track to handle a unit train on its three-track ladder railyard; Gateway Building Systems, West Fargo, ND (701-293-7202), as millwright to upgrade grain handling and loadout systems; and Hope Electric, Hope, ND (701-945-2460), to provide automation systems.
“Gateway, in particular, has been doing projects at Lidgerwood for years, and they have a lot of experience with our facilities,” says Dravland.
Work on the $6.5 million upgrade began in March 2019 and was finished in February 2020.
Additional 7,527 Feet of Track Supports Expansion

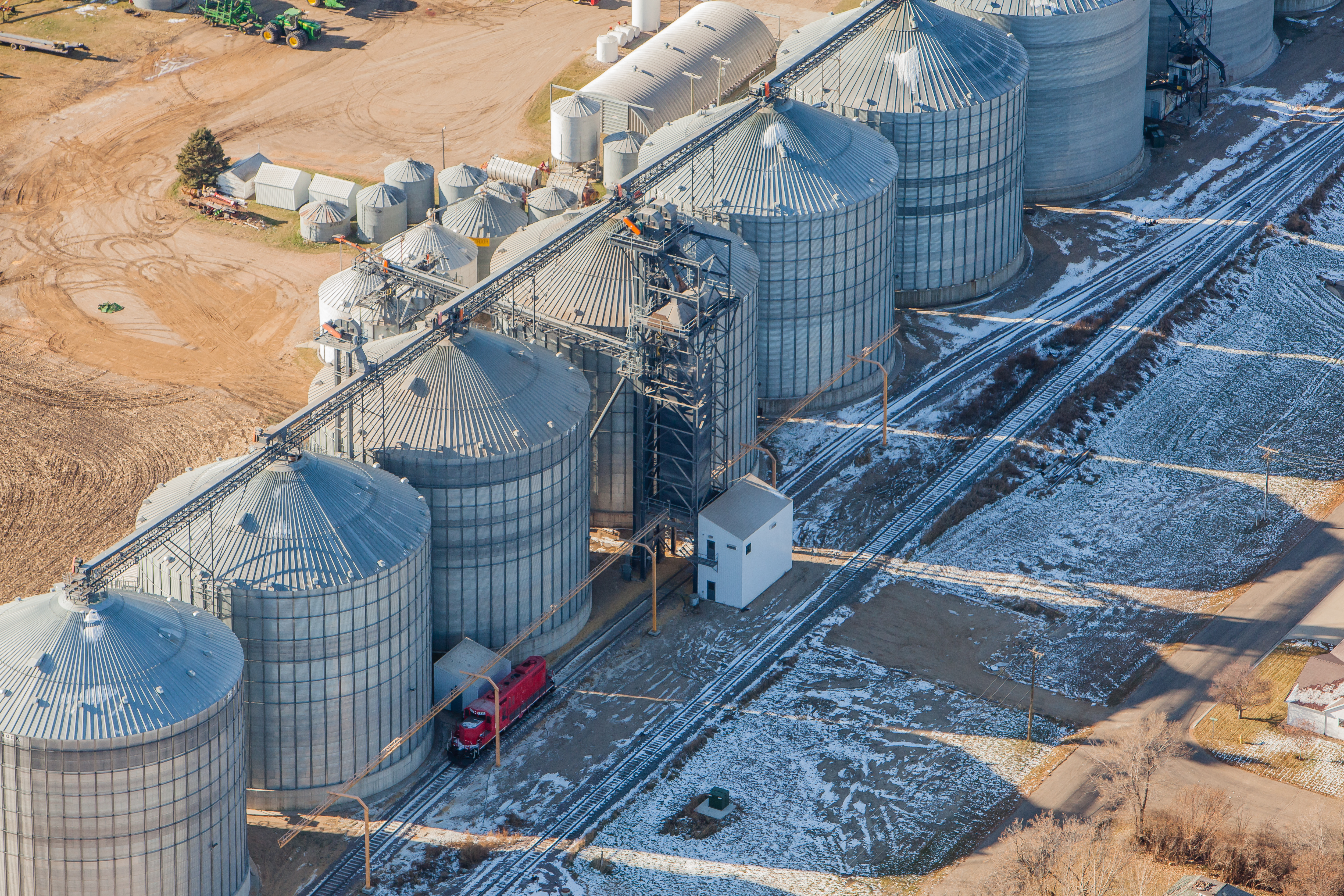

Viking added 7,527 feet of track to the south elevator’s railyard, creating enough space to store either a full or an empty unit train. New or refurbished 115-pound track was used to support high-cube capacity railcars. Farmers Coop operates its own switching locomotive to move the cars in and out of the railyard for loading.

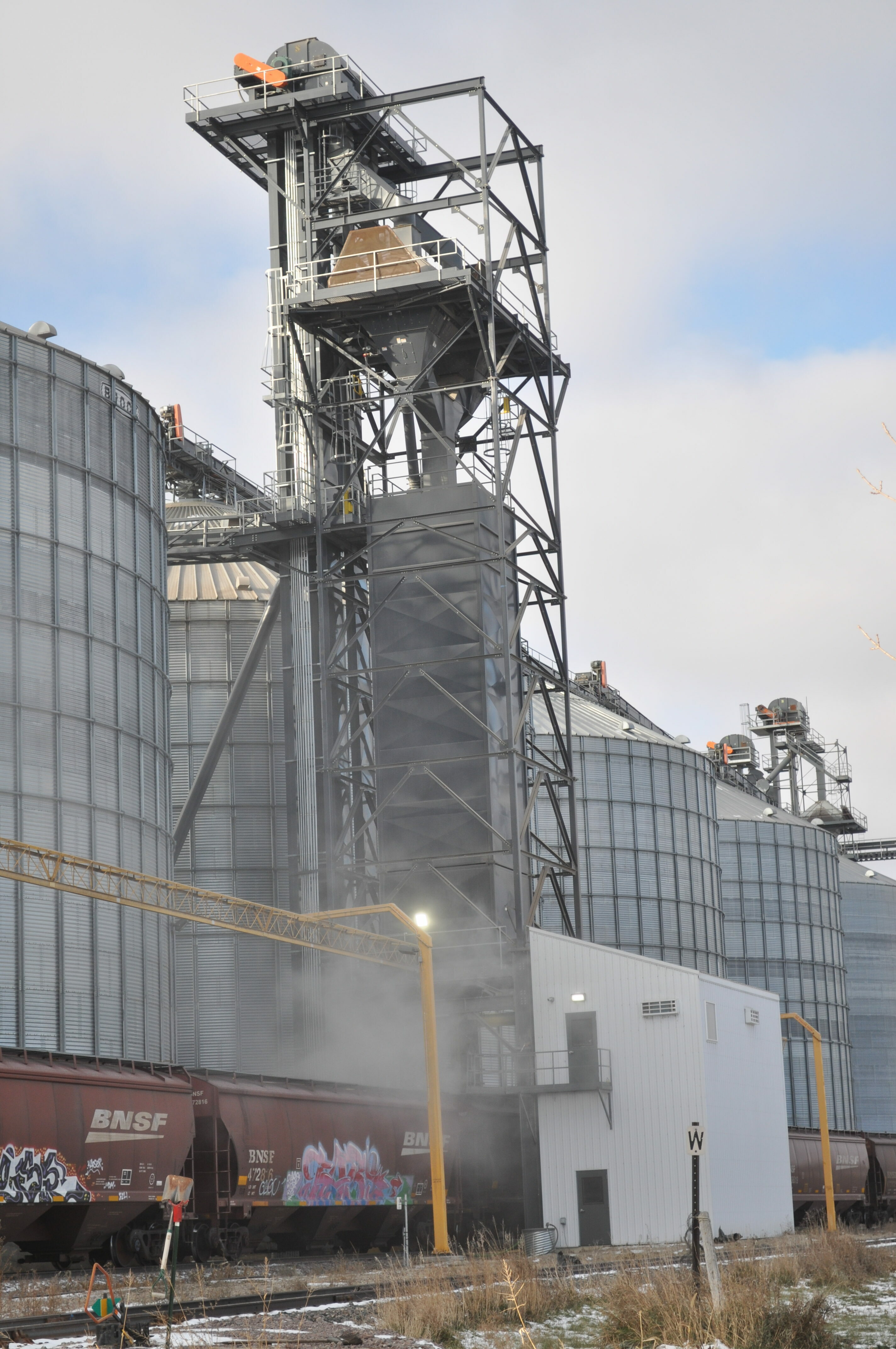

To get grain from storage to the new bulkweigher, Gateway installed a tunnel with two AGI Hi Roller 40,000-bph enclosed belt conveyors that transfer grain from storage over to two 40,000-bph Schlagel legs. These are attached to the Warrior bulkweigher tower.
Each leg is outfitted with two rows of Maxi-Lift 20x8 Tiger-CC buckets mounted on a Continental 43-inch belt supplied by Applied Power Products. The tower measures 20 feet by 20 feet by 93 feet tall, with service platforms at 47, 69, and 93 feet.
The legs feed two 40,000-bph Warrior gravity screeners with electronic bypass gates. The screenings are transferred on a Schlagel 10,000-bph drag conveyor to two Brock 21-foot diameter hopper screenings tanks mounted atop a Warrior six-column, 27-foot-x-46-foot-x-20-1/2-foot superstructure.

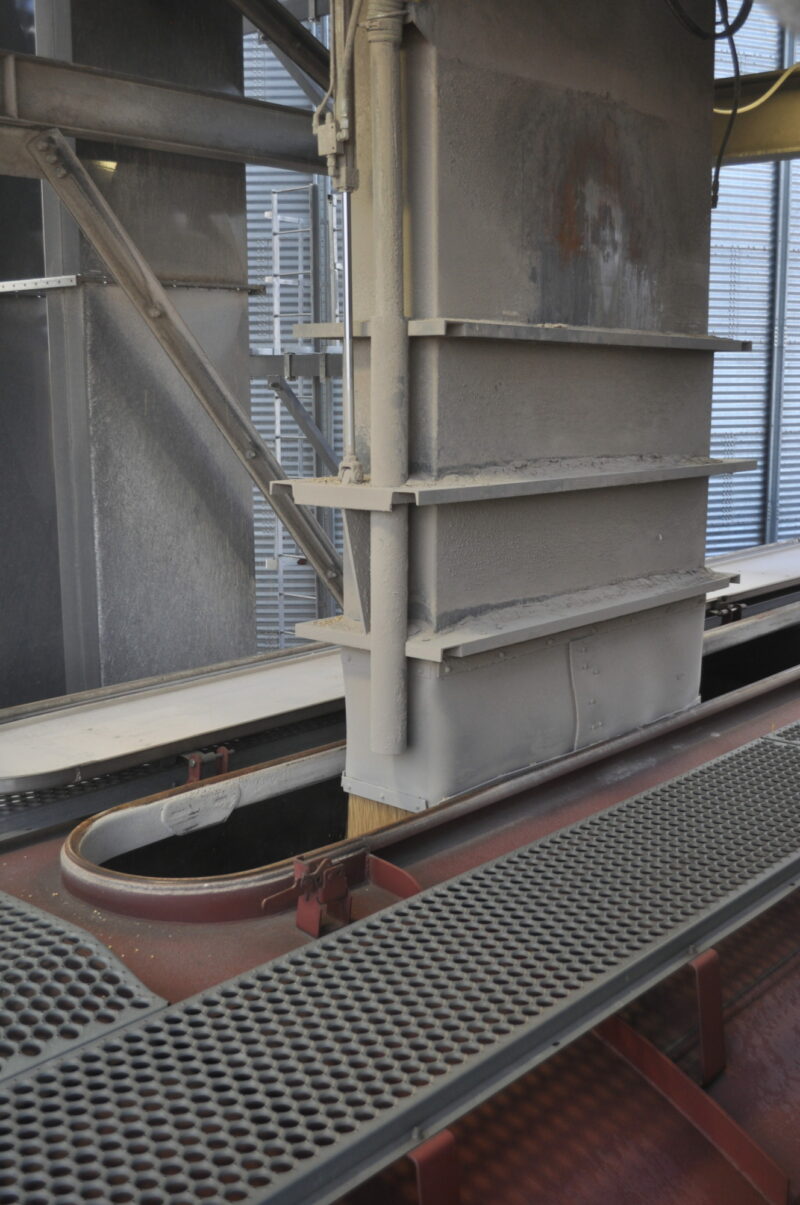

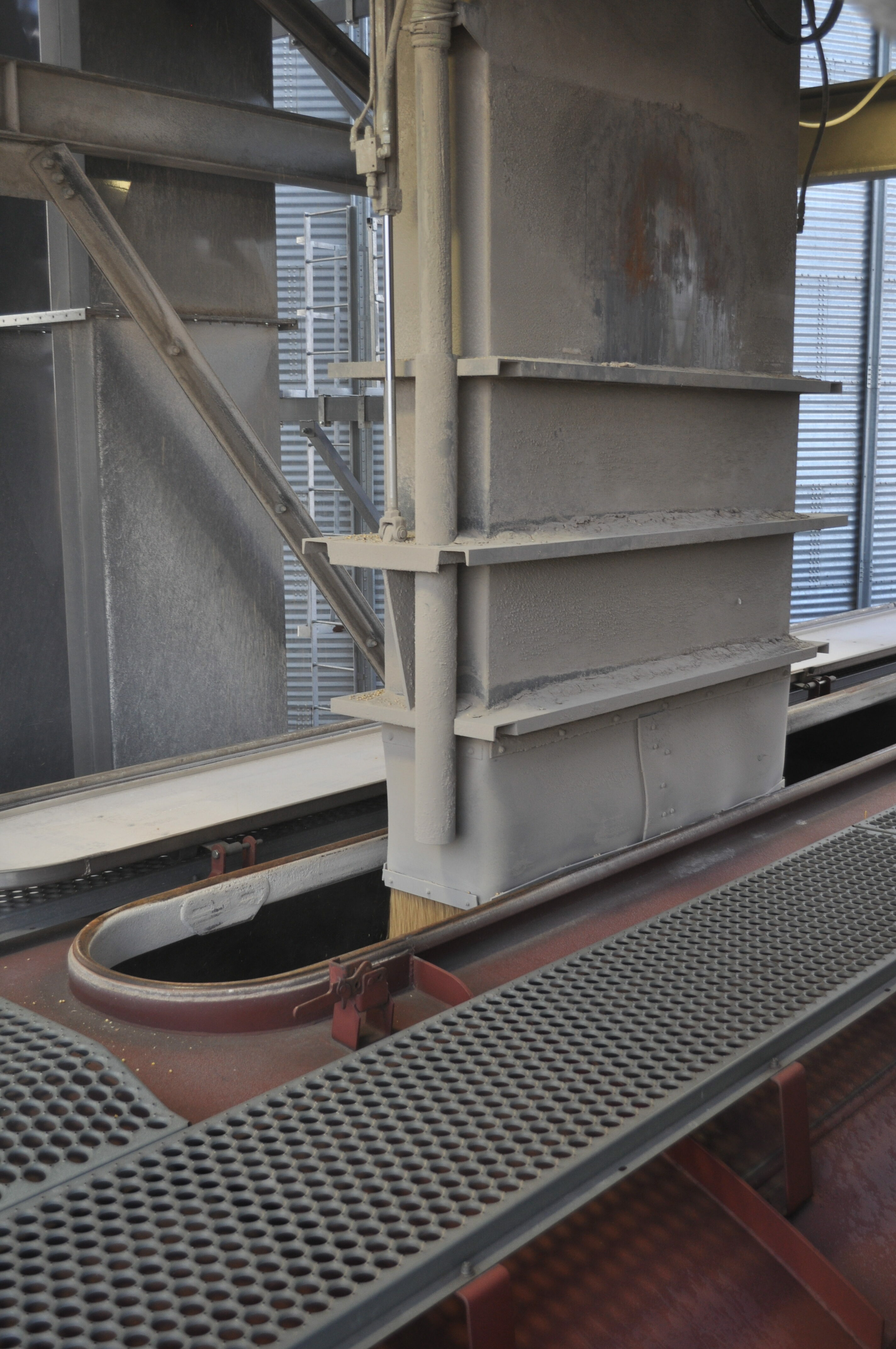

The screeners feed a 80,000-bph Meier bulkweigher that uses a Gamet sampler and loads cars through a hydraulically-operated telescoping spout.
Operations Upgraded With New Automation
Adjacent to the tower is a control shed that includes grain laboratory space. Inspections from North Dakota Grain Inspection perform testing during rail loading operations.
The bulkweigher is under the control of a CompuWeigh GMS 4000 scale control system that reads data from railcar-mounted RFID tags on maximum load and tare weight to control the flow of grain into the car.
Coop workers open hopper car doors ahead of the loadout spout, and after the cars are loaded, grain inspectors close the doors and seal them with office seals from the Federal Grain Inspection Service.
Railcars being loaded can be emptied into a rail pit equipped with a Schlagel 20,000-bph drag conveyor running back to one of the loadout legs.
“We struggled with the first four or five trains,” Dravland says. “Then our contractors got together and pinpointed the problems. Now we are loading a train in 11 hours using 18-car cuts from the railyard and we plan to get that down to 9-1/2 hours.”

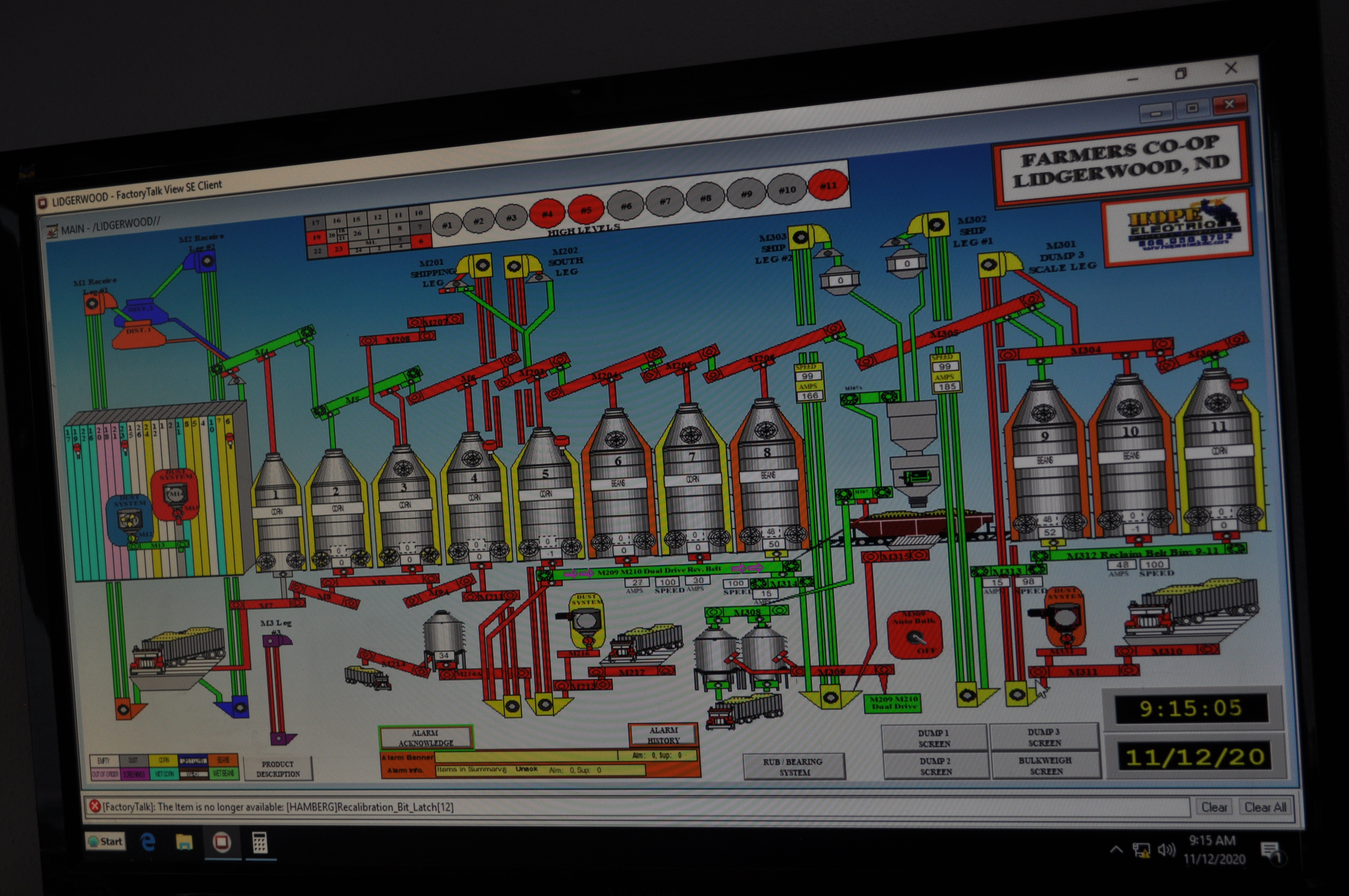

Overall elevator operations were upgraded with new automation software from Hope Electric. The system allows employees to operate every piece of equipment from touchscreen workstations throughout the facility.
In addition to these upgrades, the coop installed GSI AgriDry grain spreaders in four of its storage tanks.
Farmers Coop Elevator Co.
- Lidgerwood, ND • 701-538-4551
- Founded • 1889
- Storage capacity: 4.8 million bushels at three locations
- Annual volume: Projected 12 million bushels
- Annual revenues: $51 million
- Number of members: 250
- Number of employees: 10
- Crops handled: Corn, soybeans, hard red spring wheat
- Services: Grain handling and merchandising, seed cleaning, feed
Key personnel at Lidgerwood:
- Todd Dravland, general manager
- Randy Bischoff, plant manager
- Glen Hoots, north plant manager
- Andrew Trittin, merchandiser
- Dean Honl, Geneseo plant manager
- Beth Stroehl, office manager
Lidgerwood Supplier List
- Bearing sensors Rolfes@Boone
- Bucket elevator • Schlagel Inc.
- Bulk weigh scale • Meier Sales & Engineering
- Bulk weigh scale controls • CompuWeigh Corp.
- Catwalk Warrior Mfg. LLC
- Contractor/millwright • Gateway Building Systems Inc.
- Control system Hope Electric
- Conveyors Schlagel Inc.;
- AGI Hi Roller
- Electrical contractor Hope Electric
- Elevator buckets • Maxi-Lift Inc.
- Engineering VAA, LLC
- Fall protection Fall Protection
- Systems Inc.
- Grain spreaders • GSI AgriDry
- Gravity screeners • Warrior Mfg. LLC
- Ladder/cage systems • Warrior Mfg. LLC
- Leg belting • Continental/Applied Power Products
- Liner • Tandem Products Inc.
- Motion sensors Process Control Systems
- Motors • Toshiba International
- Sampler • Gamet Mfg. Inc.
- Service platforms • Warrior Mfg. LLC
- Speed reducers Dodge
- Steel storage Brock Grain Systems
- Steel tank erection Wieber Steel Construction
- Track builder • Viking Track Services
- Tower support system • Warrior Mfg. LLC
Ed Zdrojewski, editor
Reprinted November/December 2020 Grain Journal 2020
