The Details Behind Better Design

When evaluating a commercial grain storage project, most conversations center around capacity, structural ratings and overall cost. Those are important considerations. But another factor deserves attention: how the bin is designed to go together. The way a grain bin is assembled influences everything from construction efficiency to long-term sealing and maintenance, making thoughtful design an important part of protecting your grain.

Many of the details that influence long-term performance aren’t immediately visible. They’re found in the vertical seams, bolt patterns and connections that make up the sidewall. Those design decisions affect not only how efficiently a bin is assembled but also how easy it is to seal, maintain and service over decades of operation.

Ask someone who has spent a career building commercial grain bins, and you’ll quickly understand why those details matter.

Cory Thrush, project manager with Lowecon LLC in Crawfordsville, Ind., has spent 19 years constructing commercial grain storage facilities and estimates he has helped build more than 500 grain bins.

“As a bin builder, we’re constantly thinking about how water can get in this bin and how do we keep that out,” Thrush says. “As a bin builder, we hate getting a callback for a leaky bin.”

For builders, every seam represents another connection to align, fasten and seal. Every bolt requires time during assembly and becomes another penetration through the sidewall. While proper construction practices remain essential, thoughtful engineering can simplify those processes by reducing unnecessary complexity.

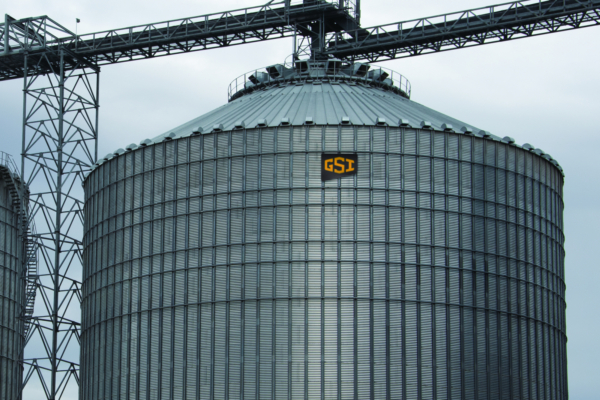

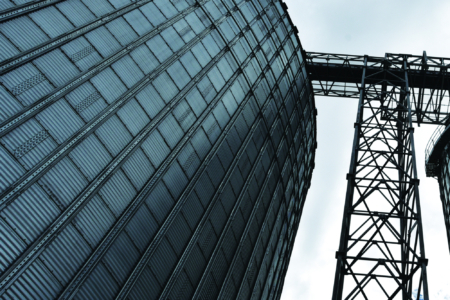

That’s the philosophy behind the GSI EVO 2X commercial grain bin.

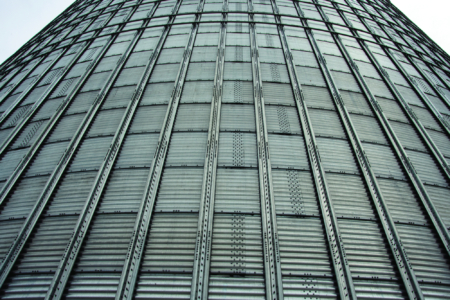

Rather than adding more material, EVO 2X approaches the sidewall differently. Longer sidewall sheets reduce the number of vertical seams by 50% compared with traditional laminated sheet designs. Interlaced sheet lamination and a staggered bolt pattern create a strong connection while requiring fewer bolts in each vertical seam.

The result is fewer connections to assemble and fewer areas requiring sealing during construction.

Thrush says those differences become apparent quickly once construction begins.

“With the interlacing, we now place sheets singly at a time, but the difference in how the seams go together is so much better. We actually much prefer it,” he says. “It cuts down on the number of bolts in the seam and makes it much easier to seal up each of the vertical seams.”

Like any new design, there was an adjustment period.

The longer sheets required Lowecon’s crews to rethink how they handled material during assembly. Once that process was refined, however, the differences became routine.

“Once we got that figured out, which we feel like we settled in about two bins in, now we don’t even notice it. It’s kind of an afterthought.”
The benefits continued throughout construction.

“It’s definitely faster through the tightening process,” Thrush explains. “The taping is easier to make sure that the bin does not leak, which is key for us as a bin builder, the end user and GSI’s intention with their design. It’s much easier. Less bolts in the seam means less wear and tear on the impacts and on my guys. Overall, it’s a vast improvement.”

For commercial grain facility managers, those construction details may seem small, but they can influence the quality and consistency of the finished structure. Fewer seams and fewer connection points don’t replace good workmanship, but they do simplify one of the most detail-oriented parts of building a grain bin.
Perhaps the strongest endorsement comes after construction is complete.

Builders measure success not only by how smoothly a project goes together but also by whether they hear from customers after the job is finished.

“I don’t know that I’ve been called back on the 2X, if that tells you anything,” Thrush says. “And I can’t say that about any other bin.”

As commercial grain facilities continue to grow in size and complexity, decision-makers are looking beyond specifications alone. Capacity, structural ratings and cost remain important, but so are the engineering decisions that influence how a bin is assembled, sealed and maintained over time.

Every commercial grain bin is built from steel. How that steel is engineered, connected and assembled is what sets one design apart from another and can make a meaningful difference throughout the life of the facility.

Visit www.grainsystems.com for more information.
